Samlex

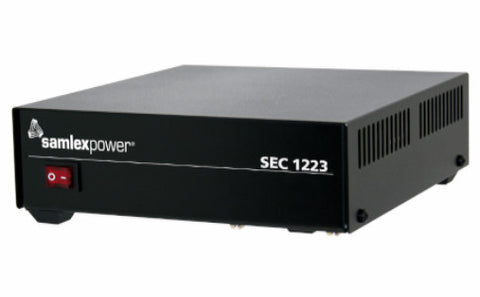

SEC-1223 Power Supply

  • Sale
  • $190.00


Manufacturer: Samlex - Model: SEC-1223

This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

Design Features

  • Advanced switch-mode technology
  • Reliable power with minimum weight and size
  • Circuit innovations minimize output voltage ripple and RFI
  • Input voltage can be set at 120VAC or 240VAC
  • UL listed to both USA & Canadian safety standards.

Specification

Input 100-130 VAC
Output 13.8 VDC
Amps 23 Amps
Fuse 6.3 Amps
Weight 3.5 (lbs)
Weight 1.58 (kg)
Dimensions 8.19 x 7.28 x 2.4 (in)
Dimensions 20.8 x 18.5 x 6.1 (cm)
Safety UL, FCC
Warranty 3 Year Limited
Applications
  • Two way radio base stations
  • Communications systems
  • Security systems
  • Test equipment
  • Plotters
  • GPS receivers
  • Automotive & Marine displays
  • DC computers
  • 12 Volt lighting systems
  • OEM applications
APPROVALS
