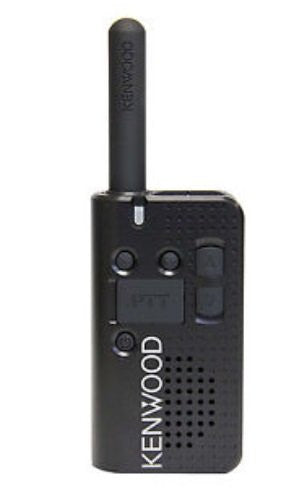

Kenwood PKT-23P POCKET PORTABLE UHF 1.5 WATTS 12.5KHZ 16CH


Product on Back-order Call for ETA : 604 850 0215

SMALL. SIMPLE. TOUGH. POWERFUL.

At 3.9oz, the PKT-23P is the smallest and lightest 2-way radio from Kenwood. With 15 hours of battery life, this radio is simple and easy to use; yet durable with IP54 / MIL-STD 810 construction.
Accessories included: 1) Battery, 2) Rapid Charger, 3) Belt Clip.

  • 15 HRS
    BATTERY LIFE

  • COVERAGE
    UP TO 8 KM

  • 3.9
    OUNCES

  • 2 YEAR
    WARRANTY

PKT-23P FEATURES

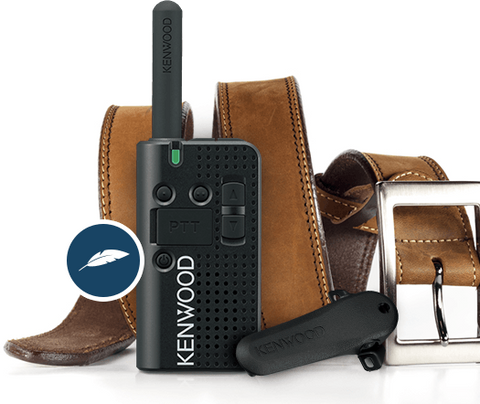

LIGHT WEIGHT, SIMPLE TO USE.

Fitting in the palm of your hand, the PKT-23P is easy to take anywhere your staff needs to go. At only 3.9oz, it can fit comfortably in an apron pocket or attached with the included belt clip. The front panel button layout makes the PKT-23P very easy to operate.

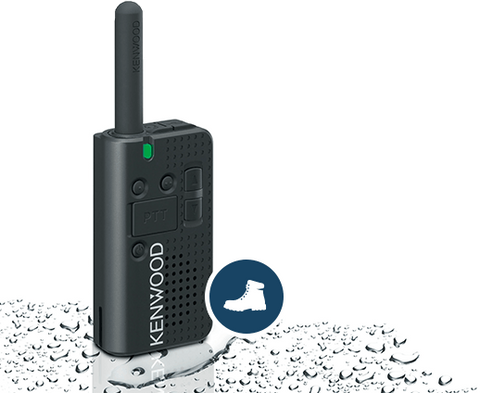

RUGGED, SOLID DESIGN.

The PKT-23P is proven tough for everyday use; tested for pressure, temperature, shock, water, dust, vibration and almost anything you can throw at it!*

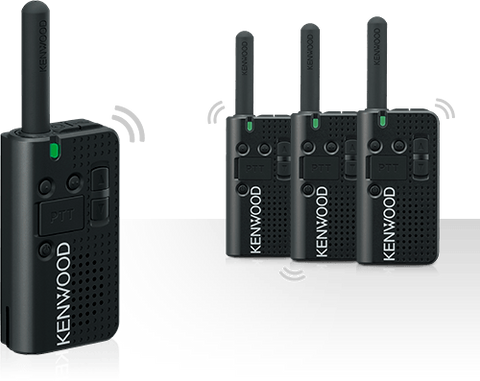

INSTANTLY COMMUNICATE WITH YOUR ENTIRE WORKFORCE.

Quickly and effectively communicate to your team with one-to-many communications. The PKT-23P also boasts 16 channel capacity so you can assign channels to specific team members.

Coverage area up to 8KM.*

COVERAGE AREA UP TO 8KM.*

Rest assured that with the extended coverage of the PKT-23P radio your Push-To-Talk (PTT) communications will be crystal clear with up to 8KM’s coverage.

15 HOURS OF OPERATION

With the built-in (replaceable) battery your staff will get 15 hours of continuous use – more than enough to tackle each and every shift.

15 Hours of operation

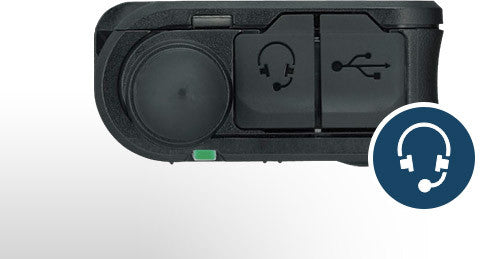

BUILT-IN 3.5MM JACK.

Connect the KHS-33 or KHS-34 headphones for better use in private communications or in noisy environments.

EQUIPPED WITH MICRO USB.

The PKT-23P is equipped with a micro USB to utilise your smartphone charger in remote areas where the included charger is not ideal or available.

ACCESSORIES

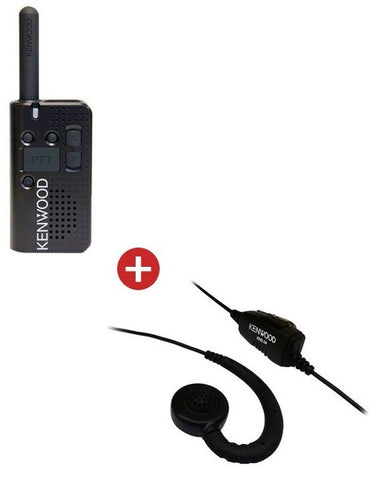

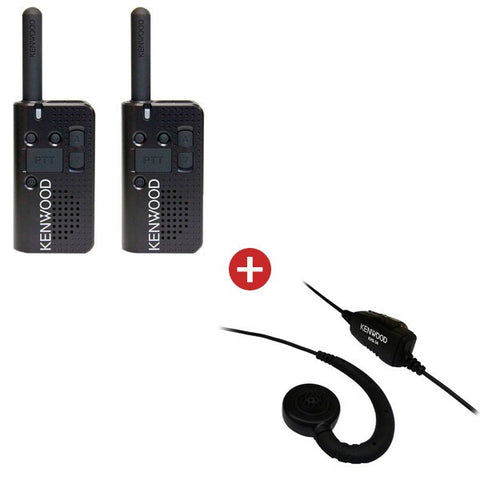

HEADPHONES

Simple, hands-free communications for clearer audio performance in noisy environments, or to ensure a private conversations between staff are kept private.

Headphones
Belt Clip

BELT CLIP

Ensure a secure and comfortable fit with the included belt clip. The radio can also fit comfortably in a pocket or around your neck (with lanyard).



PKT-23P FEATURES

  • 1.5 Watts Transmit Power
  • 16 Channels
  • 39-QT/168-DQT Coded Squelch
  • Super Lock (Manager Key Lock)
  • Scan Function
  • 2 PF Keys
  • Enhanced Kenwood Audio
  • VOX Ready
  • Voice Announcement
  • Bell Tone Alert
  • LED Battery Status Indicator
  • IP54 & MIL-STD 810 C/D/E/F/G 11 items
  • Battery Saver
  • Time Out Timer
  • Monitor
  • Wireless Clone
  • 2-year Warranty

GENERAL SPECIFICATIONS

Frequency Range 450-470 MHz
Number of Channels 16
Channel Spacing 12.5 kHz
Channel Step 5, 6.25 kHz
Operating Voltage 3.8V DC±10%
Battery Life (5-5-90 duty cycle)
w/ KNB-71L (1,430mAh)
Approx. 11 hours (battery saver off)
Approx. 15 hours (battery saver on)
Operating Temperature Range* 14°F ~ +140°F (-10°C ~ +60°C)
Frequency Stability ±2.5ppm (14°F ~ +140°F)
Antenna Impedance 50 Ω
Dimensions (WxHxD)
Projections not included. Radio w/ KNB-71L
1.8 x 3.3 x 0.8 in. (46.0 x 85.0 x 21.0 mm)
Weight (net)
Radio w/ KNB-71L
3.9 oz. (110 g)
IC Certification Number 282D-460300
*Based upon 5% transmit, 5% receive and 90% standy (standard duty cycle)

OPERATING CONDITIONS

Open areas without obstructions Up to 8 km (5 miles)
Residential Areas (near buildings) Up to 2.4 km (1.5 miles)
In steel and/or concrete Reinforced Buildings Up to 255,000 sq.ft
In high-rise buildings Up to 17 floors
Note: Talk range will vary based on terrain and conditions.

RECEIVER SPECIFICATIONS (MEASUREMENTS MADE PER TIA/EIA-603)

Sensitivity (12dB SINAD)
Narrow
0.22 μV
Selectivity
Narrow
60 dB
Intermodulation Distortion
Narrow
50 dB
Audio Output 300 mW with less than 5% distortion

TRANSMITTER SPECIFICATIONS (MEASUREMENTS MADE PER TIA/EIA-603)

RF Output Power
High / Low
0.5W / 1.5W
Spurious Response 55 dB
Modulation
Narrow
11KØF3E
FM HUM & Noise
Narrow
55 dB
Audio Distortion Less than 5%

INTERNATIONAL PROTECTION STANDARD

Dust & Water Protection IP54
